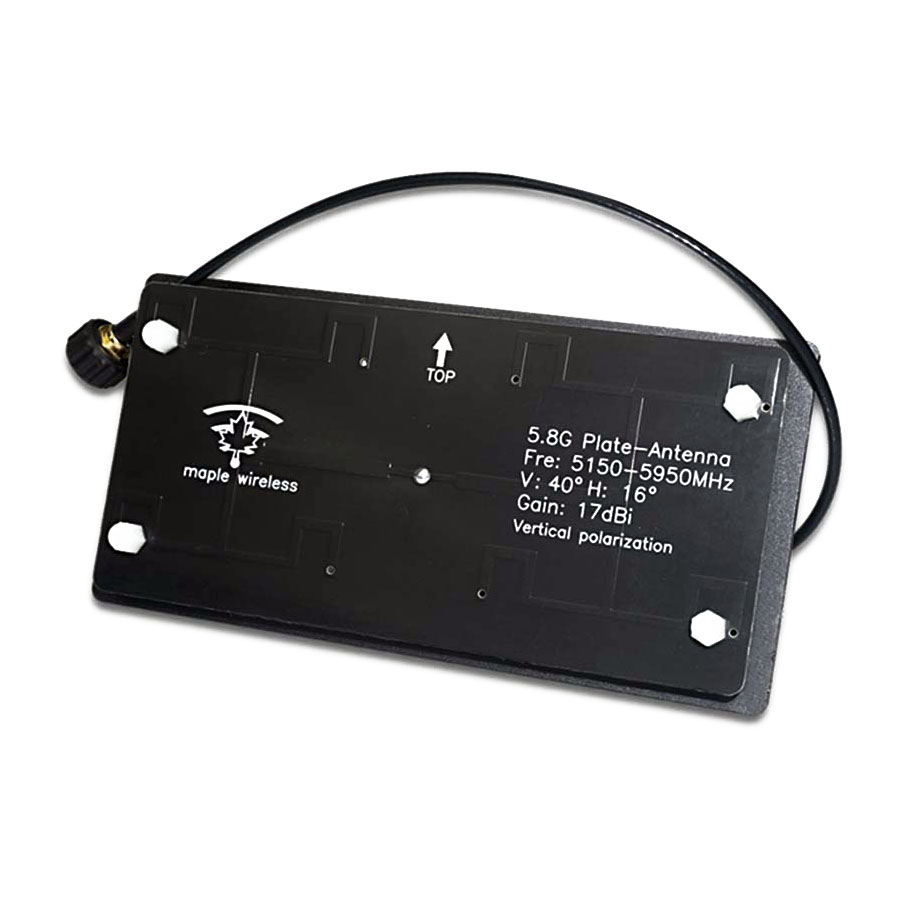

Maple Wireless 17dBi Patch

Auf Lager
€ 23,89

onoff  Maschinenübersetzung ansehen

Directional antenna with very high gain 17dBi designed for 5.8GHz band. The antenna is especially suitable for long distance flights. Due to the antenna's larger size and narrow radiation pattern, it is suitable when installed on a tripod or antenna tracker. The antenna connects via a flexible coaxial cable with a length of 30cm terminated with a SMA connector. The antenna has linear vertical polarization.

Hauptmerkmale

  • Frequency range: 5180 - 5950 MHz
  • Gain: 17dBi
  • Horizontal beam angle: 16° (-3db)
  • Vertical beam angle: 40° (-3db)
  • Polarization: linear
  • Conector: SMA
  • Cable length: 30cm
  • Dimensions: 136x68x10mm
  • Weight: 47g

Inhalt

  • 1x Antenna
