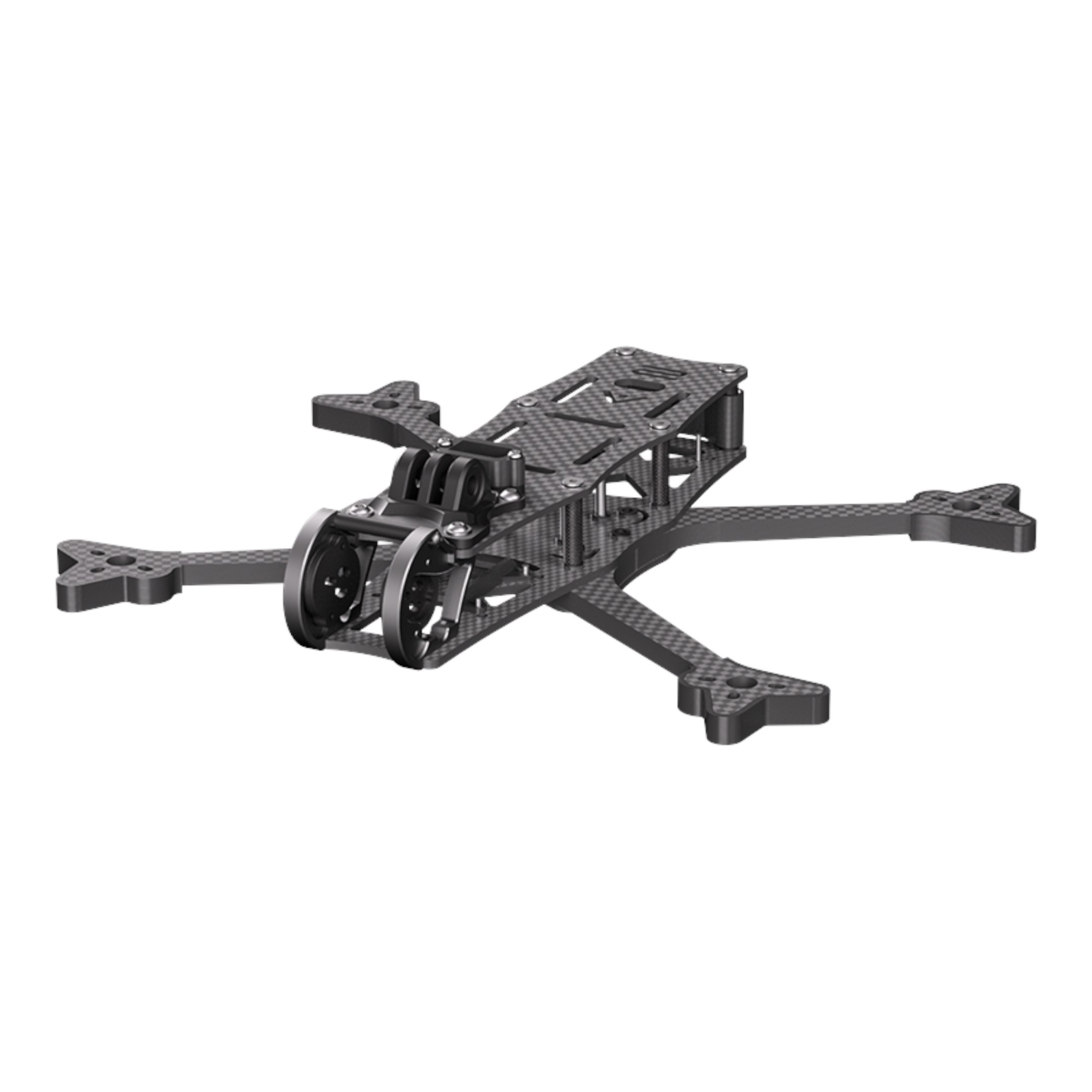

AOS 5 V5.1

AOS 5 V5 is a unique freestyle frame that will be appreciated by beginners and the most demanding pilots alike. The frame is unique in its stack mounting method - the so-called X-Cell mount. The part of the bottom plate on which the stack is installed is connected to the rest of the frame only at 4 small sections located at the nodes of a standing wave. Thanks to this, fewer unwanted vibrations are transferred to the flight controller gyro. This makes it possible to use less aggressive filters and higher PID values, resulting in better flight characteristics. To further minimize vibrations, the frame uses durable arms made of 6mm thick carbon.AOS 5 V5 is designed as a freestyle frame for building a drone with analog and digital transmission (DJI O3 - 20cm cable required, HDZero, Walksnail Avatar. The frame also accommodates 5,2" propellers. The camera is extended sufficiently forward, so the edges of the propellers are not visible in the camera. The camera is protected in a cage made of durable 7075-T6 aluminum alloy. The frame accommodates stacks with mounting hole spacing of 20x20mm and 30,5x30,5mm M3. In the front and rear part of the frame there is space for mounting additional stacks with spacing 20x20/25,5x25,5/30,5x30,5mm. The top plate has a fixed XT60 connector, which makes battery handling easier and minimizes the chance of cables getting caught in the propellers. The battery can be attached to the top plate in the usual longitudinal way, or rotated 90° sideways. The frame accommodates motors with 16mm and 19mm M3 mounting holes.
