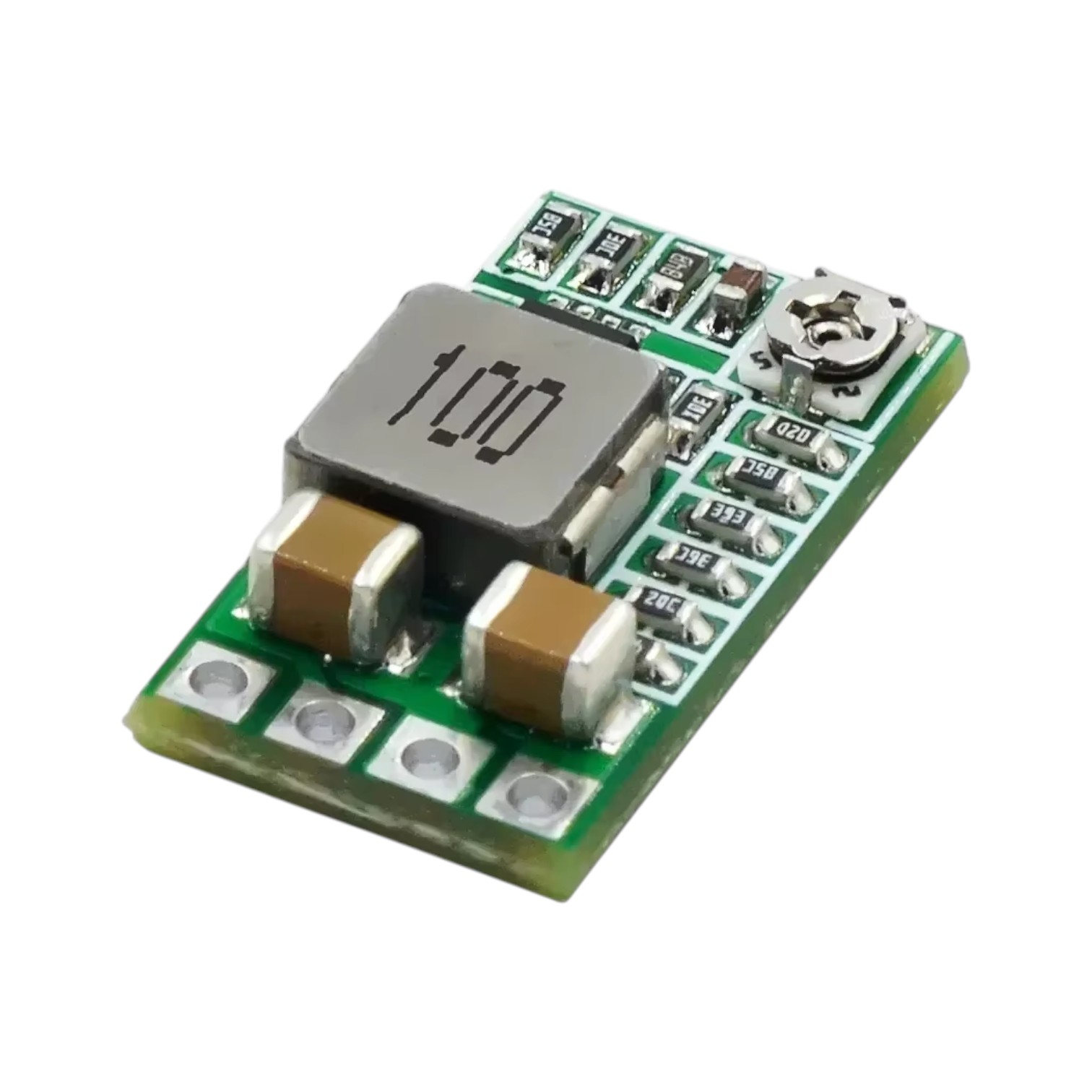

Small adjustable switching BEC for powering cameras, video transmitters, LEDs and other electronics. The BEC supports input voltage 4,5–24V. The output voltage can be smoothly adjusted with a trimmer in the range of 0,8–17V, or you can choose one of the fixed values 1,8 / 2,5 / 3,3 / 5 / 9 / 12V by bridging pads on the underside of the board. Maximum current is 1,5A. The output can be switched on and off with the EN pin.
The input voltage must be higher than the output voltage. The module has no reverse polarity protection.
Hauptmerkmale
- Input voltage: 4,5–24V
- Output voltage (adjustable): 0,8–17V
- Fixed outputs: 1,8 / 2,5 / 3,3 / 5 / 9 / 12V
- Maximum current: 1,5A
- Efficiency: up to 97,5 %
- Switching frequency: 500 kHz
- Output ripple: 20mV (12V→5V, 3A)
- Quiescent current: 0,85mA
- EN pin for output on/off
- Pin pitch: 2,54mm
Inhalt
- 1x BEC
