BetaFPV P1 Air Unit HD

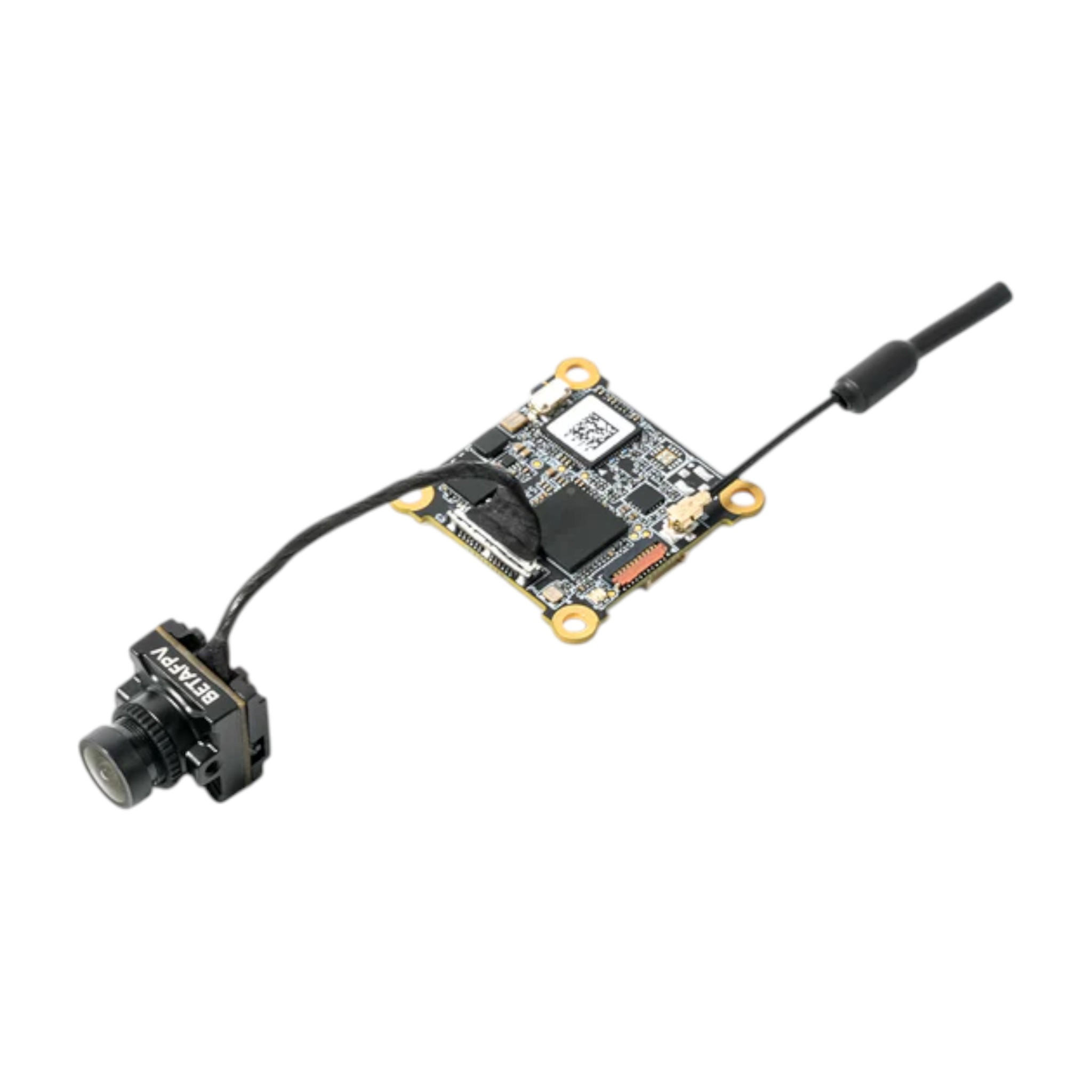

BetaFPV P1 Air Unit HD is a camera with video transmitter (air unit) for the digital image transmission system ArtLynk. The P1 Air Unit video transmitter is suitable for small FPV drones. The camera uses a 1/2.9" CMOS sensor with a wide 170° field of view, the video transmitter has a maximum transmission power of 200 mW and a data rate of up to 20 Mbps at a bandwidth of 10 MHz. It connects to the flight controller via a 6pin SH1.0 connector and communicates using the MSP (OSD) protocol. The video transmitter has mounting holes with a spacing of 25.5x25.5mm M2.5 (M2 with softmount) and the camera is in nano (14mm) size.

The ArtLynk system is an open digital HD image transmission system for FPV. Thanks to a common standard, flight units, FPV goggles and receiver modules from different manufacturers are mutually compatible. The system includes brands such as BetaFPV, HGLRC, SkyZone or TJRC. ArtLynk transmits video in 1080p at 60fps with latency around 60ms and, compared to analog transmission, offers a significantly cleaner and more stable image. It is a cost-effective alternative to DJI and Walksnail for pilots who want HD quality without a closed ecosystem from a single brand.

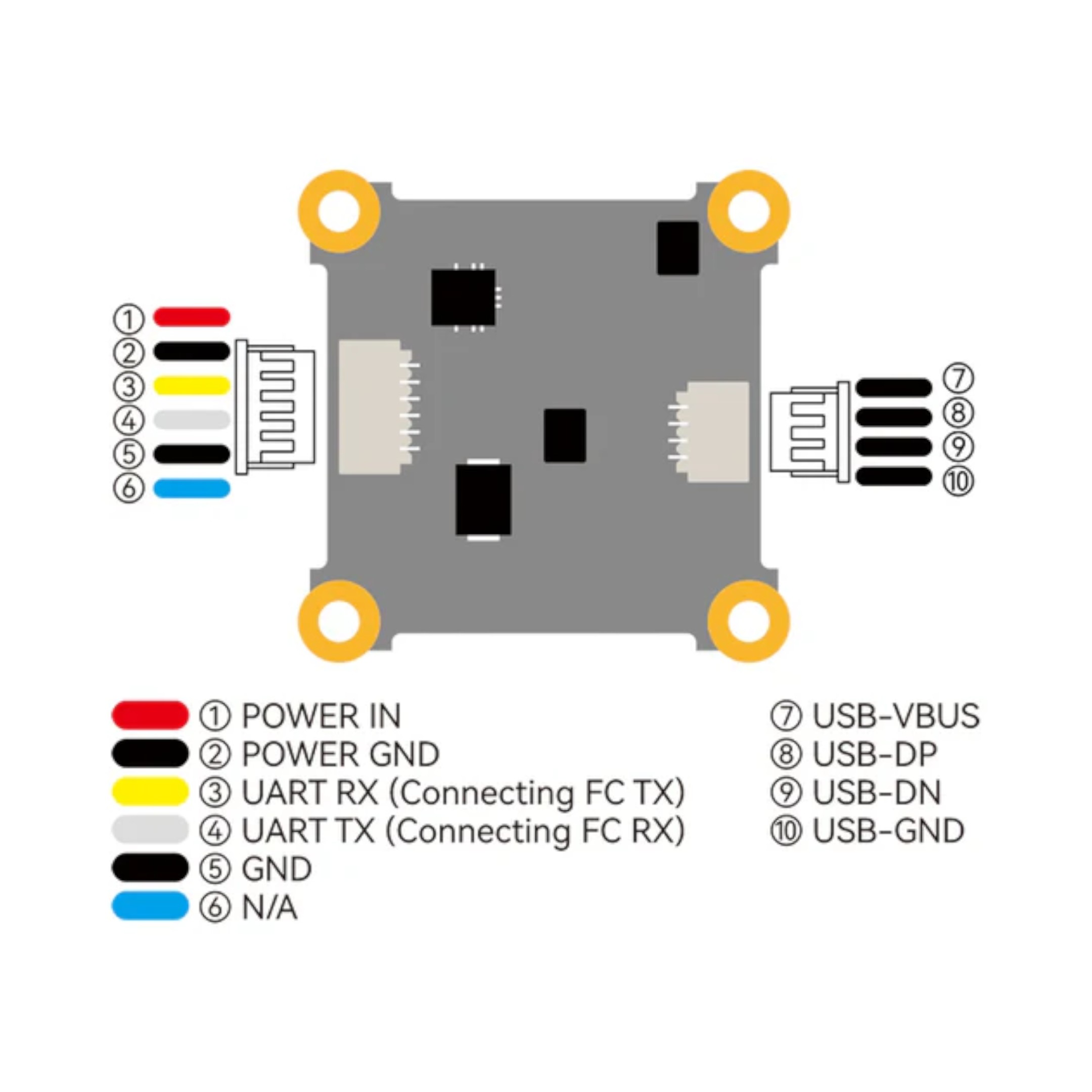

Wiring diagram

Firmware
