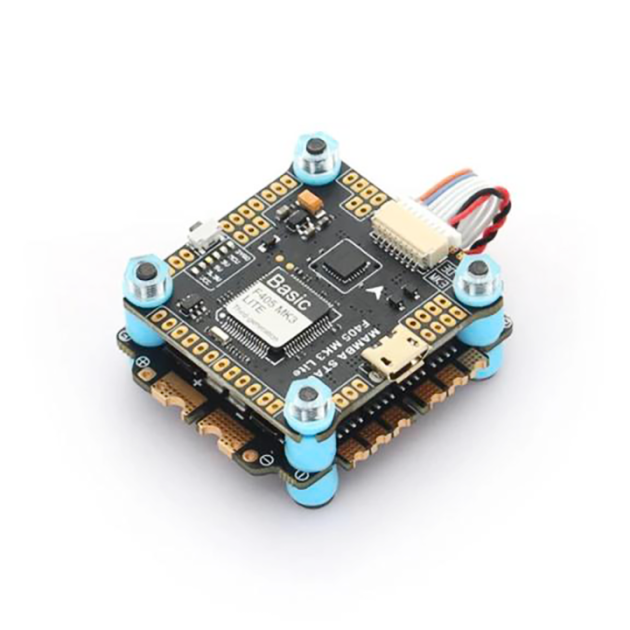

Diatone Mamba Basic F405 MK3 Lite + 40A ESC
Verkauf beendet
€ 83,29
86.49
-3% OFF!
Mamba Basic F405 MK3 + 40A ESC is a combination of control unit with F4 processor and 40A controllers with FW BlHeli_S. Stack is used mainly in freestyle 5" drones powered by 3-6S batteries and offers a reasonable price-performance ratio. The control unit uses a reliable gyroscope MPU6000, has 16MB memory for blackbox and 9V BEC for possible connection of DJI FPV flight unit.
Scheme here.
Hauptmerkmale
FC: MAMBA BASIC F405 MK3 lite
- MCU: 168MHz STM32F405RGT6
- IMU: MPU6000
- Barometer: No.
- Blackbox: 16MB
- Number of UARTs: 5
- Input voltage 3-6S
- TVS Diode
- BEC: 3.3V@0.5A, 5V @ 3A, 9V @ 3A
- Mounting holes: 30.5x30.5mm, M3
ESC: MAMBA 40_BLS
- Input voltage: 3-6S Lipo (12.6V-25.2V)
- Constant current: 40A × 4
- Firmware: BLHeli_S CH40
- Mounting holes: 30.5x30.5mm, M3
Inhalt
- 1x MAMBA BASIC F405 MK3 lite
- 1x MAMBA F50_BLS
- 1x capacitor 470uF / 35V
- 2x 8pin sh1.0
- 2x 12AWG with XT60 10cm
