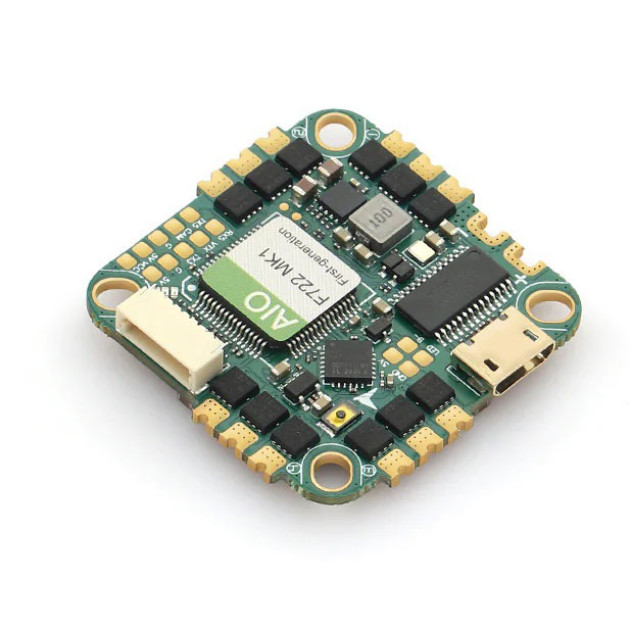

Mamba F722 MK1 35A 3-6S AIO is a powerful board with F7 processor and 35A ESC in one. The board is especially suitable for smaller drones, cinewhoops or ultralight toothpicks. The board has a mounting hole spacing of 25.5x25.5mm with a 3mm hole. When using softmounts, the board is installed on M2 screws. The basis of the flight controller is a powerful F722 processor and ESC with BlHeli_S firmware. The board is also equipped with a current sensor, a barometer, a 5V BEC and a TVS diode. It can be powered by a 3-6S Lipo battery.
Hauptmerkmale
- Input voltage: 3-6S (8.4~25.2V)
- BF Target: MAMBA F722_2022B
- MCU: 216MHz STM32F722
- IMU: ICM42688P
- Barometer: Yes
- OSD: Yes
- Blackbox: No
- Number of UARTs: 5
- TVS Diode
- BEC: 5V 2.5A
- Mounting holes: 25.5x25.5mm M3/M2
- Current: 35A
Inhalt
- 1x AIO board
- 1x Capacitor
- 1x Set of cables
- 1 x XT60
