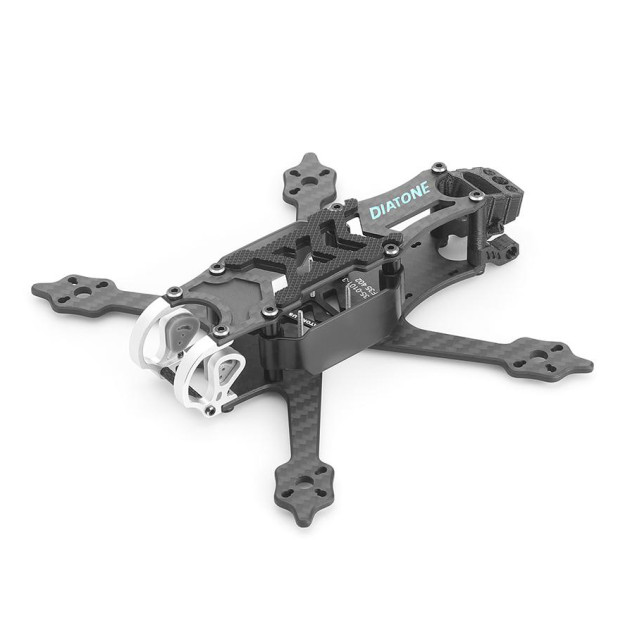

Diatone Roma F35 is a small freestyle frame that can hold up to 3.5" propellers. The frame has a very nicely managed carbon and a metal cage that protects the camera. The stack is protected by a plastic cover. Thanks to the longer body, the Caddx Vista unit for digital HD transmission The frame can be used with both smaller motors with 12mm M2 mounting holes and larger 220X motors with 16mm M3 mounting holes, as well as 20x20mm M2 / M3 and 30.5x30.5mm M3 stacks.
Hauptmerkmale
- Diagonal distance between motors: 158mm
- Weight: 70g
- Propeller size: 3.5"
- Stack mounting holes: 20x20mm M2 / M3, 30.5x30.5mm M3
- Mounting holes motor: 12mm M2, 16mm M3
- Camera: 19 / 20mm (Micro)
- Stack height: 25mm
- Shoulder thickness: 3mm
- Bottom plate: 3mm
- Upper plate: 2mm
Inhalt
- 1x Frame
