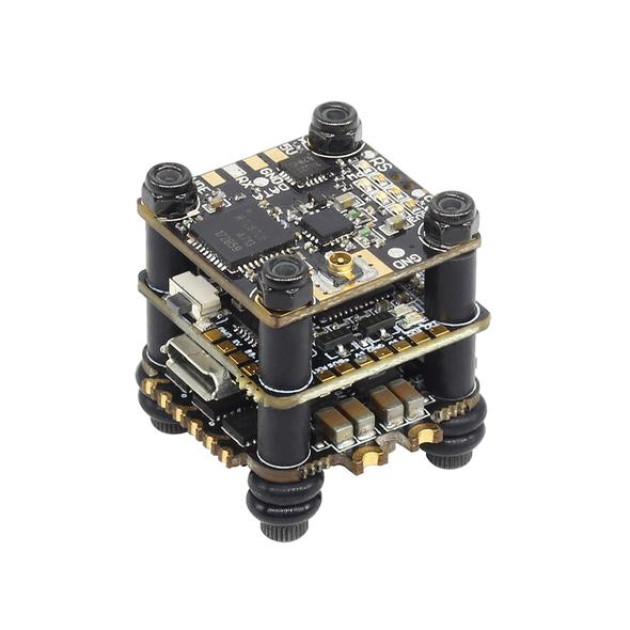

HGLRC FD413 stack 16x16 (F4+13A+VTX)
Verkauf beendet
€ 53,47
The HGLRC FD413 is a stack of F4 controller, 13A 4in1 controller and VTX with 16x16 mm mounting hole pitch.
Wiring scheme here.
Hauptmerkmale
Control unit FD411:
- MPU: MPU6000-SPI
- CPU: STM32F411CEU6
- Black Box: NO
- Input Voltage: 3-6S
- Built-in Betaflight OSD to adjust PID
- BEC Output: 4V2A
- Size: 21x21mm
- Installation hole: 16x16mm, M2
- Weight: 2.7 g
- Support SBUS / PPM / DSMX / iBUS Receiver
FD13A 4in1 2-4S ESC:
- Input voltage: 3-6S Lipo
- Max continuous current: 13A
- Max short-time current: 15A （5S）
- BEC Ouput: NO
- Dimensions outside: 23x24mm
- Mounting holes: 16x16mm, M2
- Weight: 3.2 g
- CPU: SILABS EFM8BB2 48MHz
- Support Damped Mode DSHOT600 / 300/150 / Oneshot125 / 42, MultiShot
HGLRC FD VTX Micro 400mW
- Weight: 1.5g
- Power: 25, 100, 200, 400 mW (switchable)
Inhalt
- 1x FD411 Flight Controller
- 1x FD13A BLS 4in1 ESC
- HGLRC FD VTX Micro 400mW
