iFlight SucceX-E Mini F4 + 35 A stack

Verkauf beendet
€ 71,11

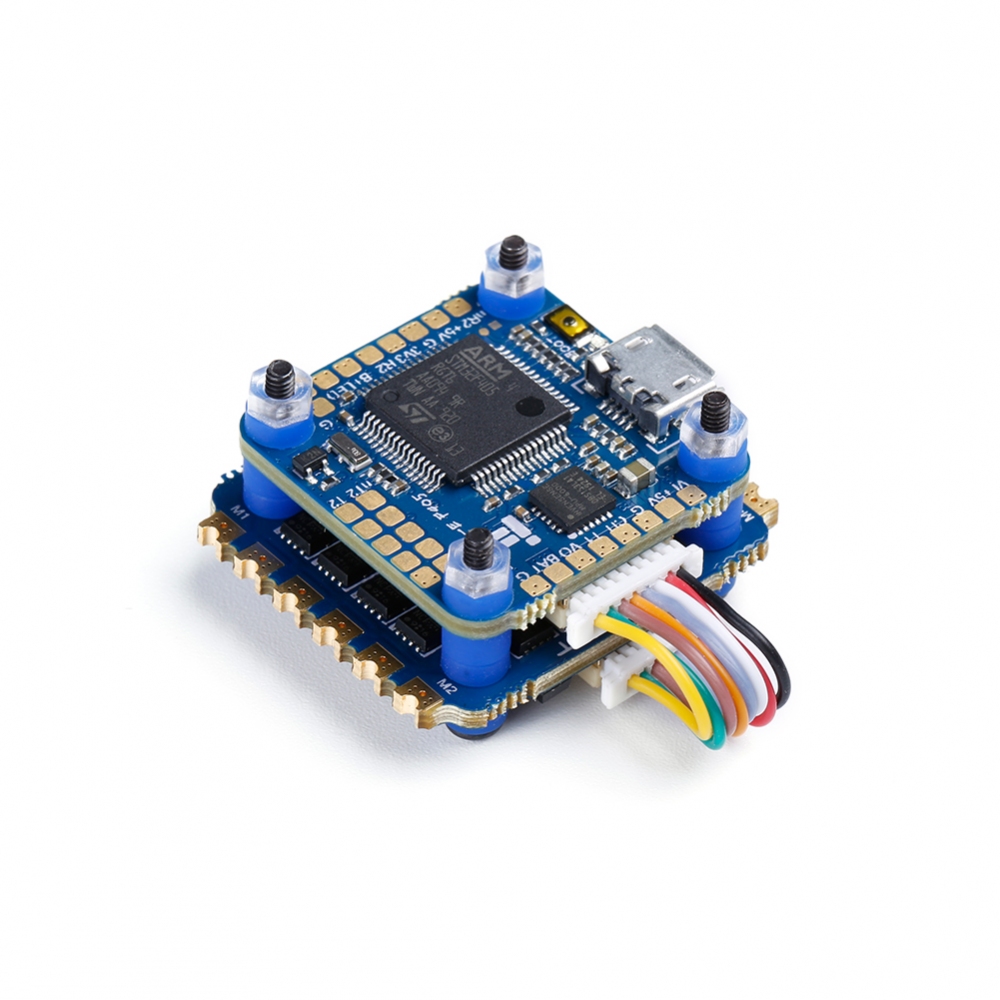

The SucceX-E Mini F4 + 35A stack is an advanced controller designed for maximum installation convenience and extreme performance. In the category of "mini" stacks with mounting spacing 20x20mm is sufficiently sized to power 2-6S LiPo cells. The stack consists of a control unit with F4 processor and proven MPU6000 gyro in combination with 4in1 controllers rated for 35A continuous load. In this version, the connection of the controller with the control unit is made with a connecting cable - this makes it easier to damp the vibrations and there is no danger of pins tearing off in the event of an impact. The whole stack is connected with steel screws, which ensure their fixed relative position to avoid damage to the joint. At the same time, the manufacturer tightens the control unit through rubber pads to facilitate filtering of vibrations.


Due to its size, current rating and power options up to 6S, it is a full-featured stack not only for indoor racing copters, but also for outdoor racing miniquads.

Hauptmerkmale

FC - SucceX-E Mini


  • MCU: 168mhZ STM32f405
  • Gyro: MPU6000
  • BlackBox: 8MB
  • BF OSD: YES
  • Uart: 6
  • Energy management: 2-6S LiPo
  • Dimensions outside: 25x25
  • Mounting pitch: 20x20
  • Weight: 4 g
ESC - SucceX-E Mini 35A

  • MCU: BB2116G
  • Energy management: 2-6S
  • Continuous current: 35 A
  • Short-time current: 40 A
  • Weight: 6.9 g
  • Mounting pitch: 20x20
  • External dimensions: 31x30
