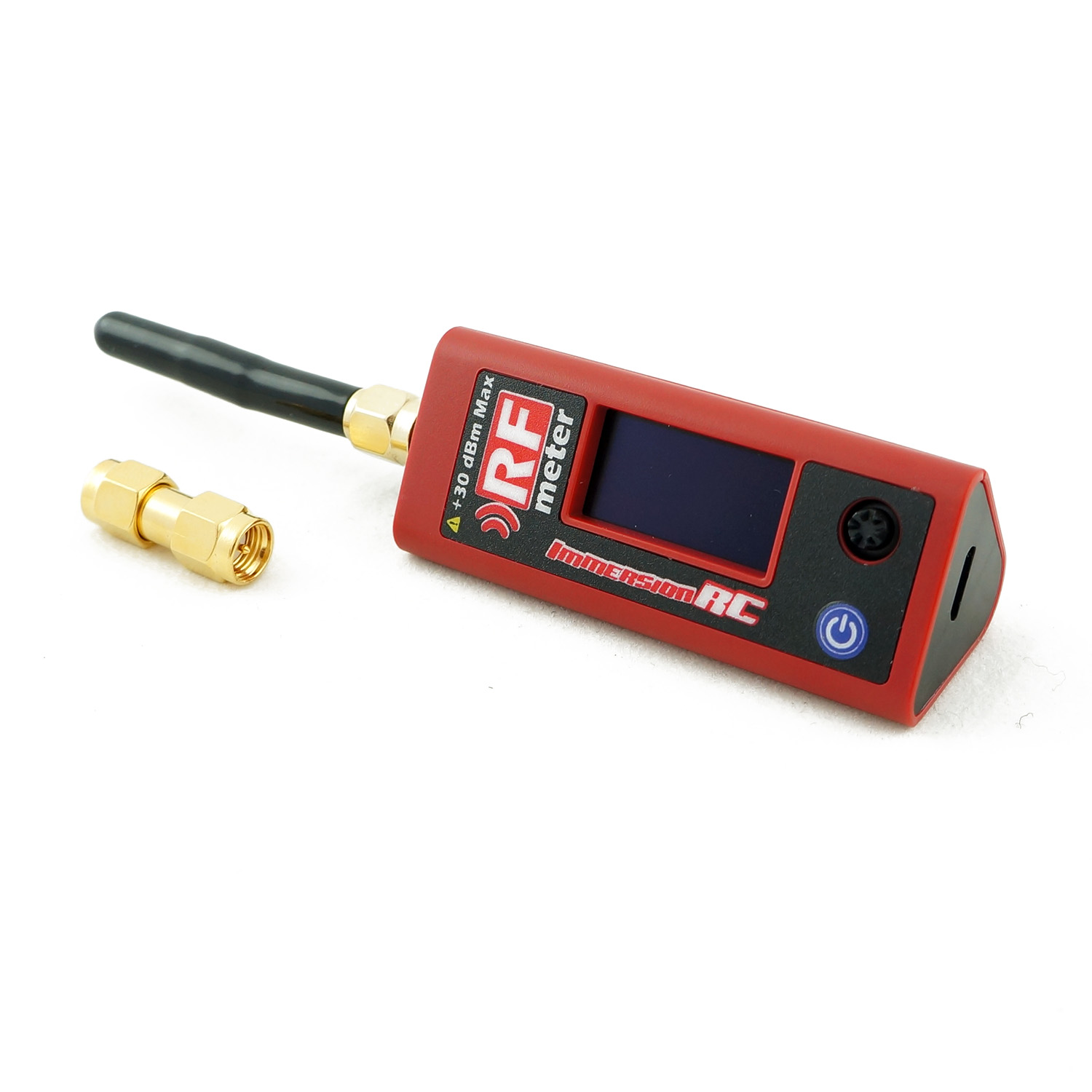

ImmersionRC RF Power Meter V2

Verkauf beendet
€ 101,99

The ImmersionRC RF Power Meter is a versatile compact device and a novelty in 2018 for transmitter-power measurement.

For comparative measurements and approximate values, it measures only by moving the Power Meter and the signal source together. For accurate measurement, the Power Meter is connected directly to the SMA connector of the transmitter.

The ImmersionRC RF Power Meter provides fast pre-flight control of powered devices, helps diagnose problems, compare the strengths of different antenna signals, and captivates women according to the official site . And no wonder, the device is calibrated to the frequency: 35; 72; 433; 1200; 2400; 5600-6000MHz (switchable at 50MHz), so you can also measure RC devices with it.

Founder of ImmersionRC Tony Cake and Joshua Bardwell introduce the ImmersionRC RF Power Meter - https://www.youtube.com/watch?v=MQu7SRDOab8

Official manufacturer's manual here .

Hauptmerkmale

  • Power Level: -20dBm up to + 30dBm
  • Calibrated Frequencies: 35, 72, 433, 1200, 2400, 5600-6000MHz at 50MHz (1 step)
  • Accuracy: +/- 0.5dB
  • Attenuator: 30dB (integrated, external is possible)
  • Battery: 3.7V Li-Ion -10440 / 600mAh
  • Power consumption: ~ 35mA
  • Battery life: ~ 8 hours
  • Charging: Micro USB
  • Antenna: 5.8GHz 'Sniffer Antenna' (linearly polarized ~ 2dBi dipole)
  • Interface: USB, power control via CDC

Inhalt

  • 1 x ImmersionRC Power meter v2
  • 1 x SMA M-M adapter
  • 1 x 5.8G dipole antenna
