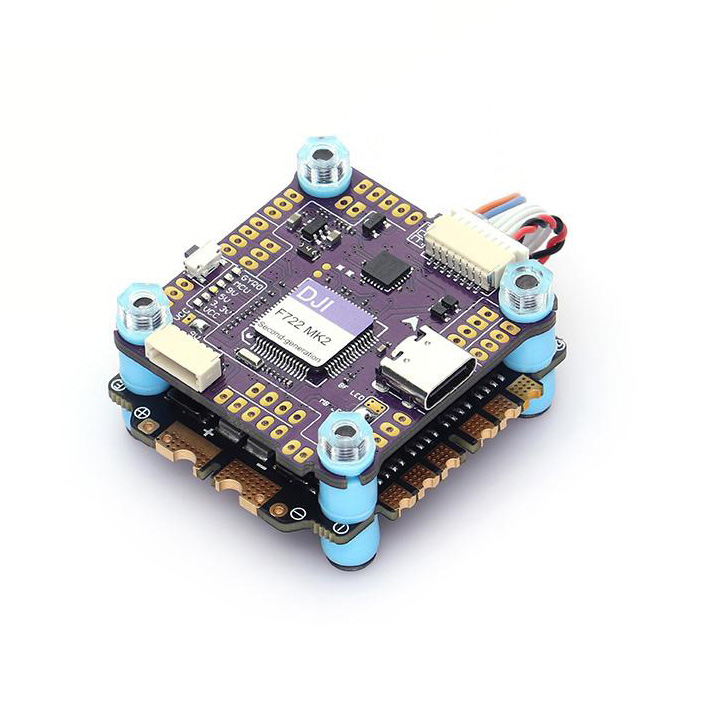

Diatone Mamba DJI F722 MK2 + 50A ESC

Verkauf beendet
€ 119,96

Mamba DJI F722 MK2 + 50A ESC is a combination of a top control unit and 50A controller with BlHeli_S firmware. The control unit is based on the F7 processor and uses the reliable MPU6000 gyroscope. It has 16MB of memory for the blackbox. The advantage is the connector for easy connection of the digital DJI FPV system and the barometer. The board also contains 5V and 9V BEC to power other devices. The controller with a load capacity of up to 50A can handle all motors commonly used on powerful 5" copters.

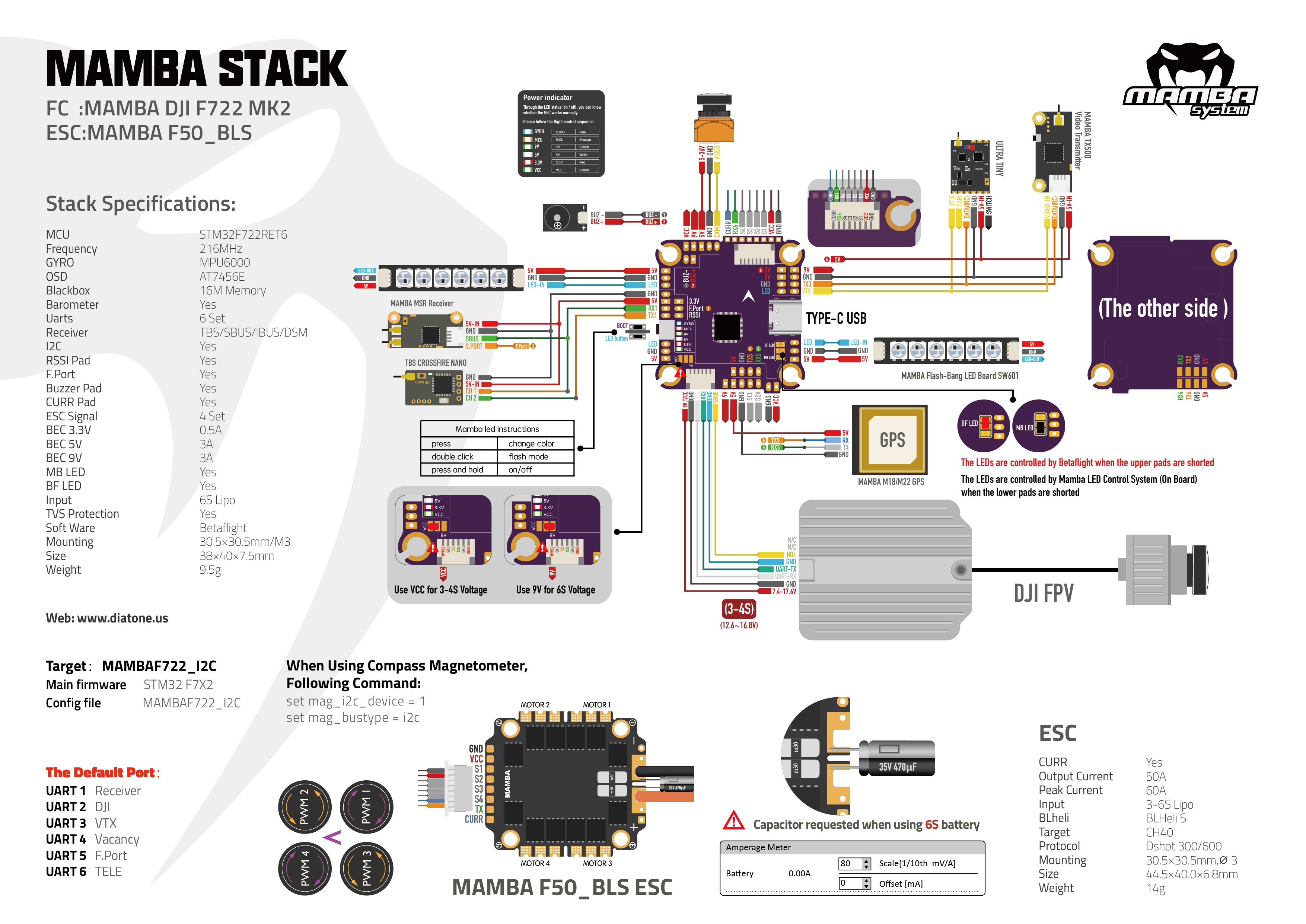

Diagram here

Hauptmerkmale

  • Power supply: 3-6S
  • IMU: MPU6000
  • Barometer: Yes
  • OSD: Yes
  • Blackbox: 16MB
  • BEC: 5V @ 3A, 9V @ 3A
  • Mounting holes: 30.5x30.5mm M3
  • Current carrying capacity: 50A
  • ESC Firmware: BlHeli_S CH40
  • Protective TVS Diode

Inhalt

  • 1x Control unit
  • 1x Regulator
  • 1x Capacitor
  • 1x XT60
  • 1x Cable set
