MicoAir LR24-F + LR24-F-Mini LoRa Telemetrie-Radio

Set telemetry modules with 500 mW output in the 2.4 GHz band. The telemetry module is based on LoRa modulation, making it highly resistant to interference and suitable for long-range use. The 2.4 GHz frequency allows data rates of 2.4 kB/s to 20 kB/s. It is typically used to transmit the Mavlink protocol from the drone flight controller, but it also allows any data to be transmitted via UART.

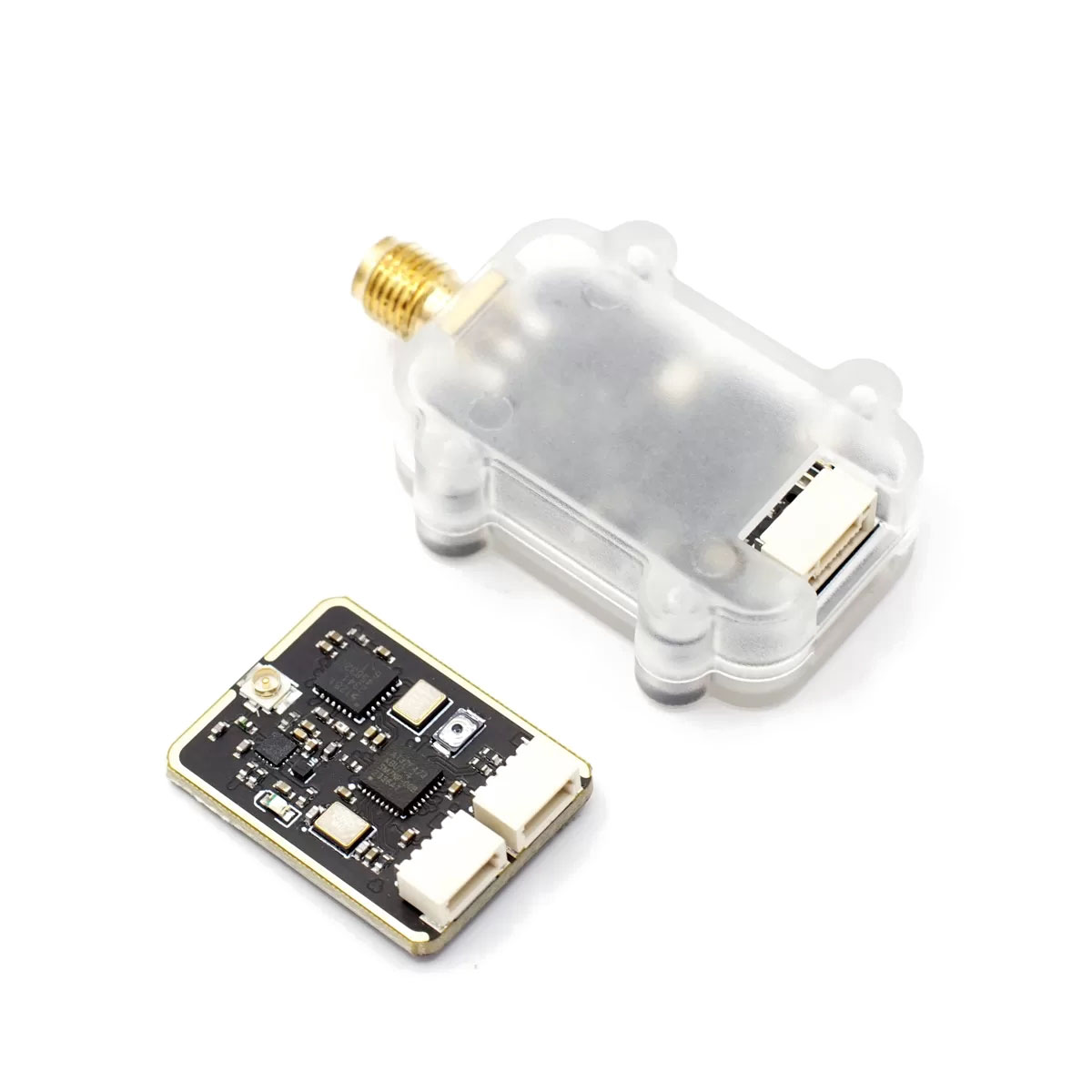

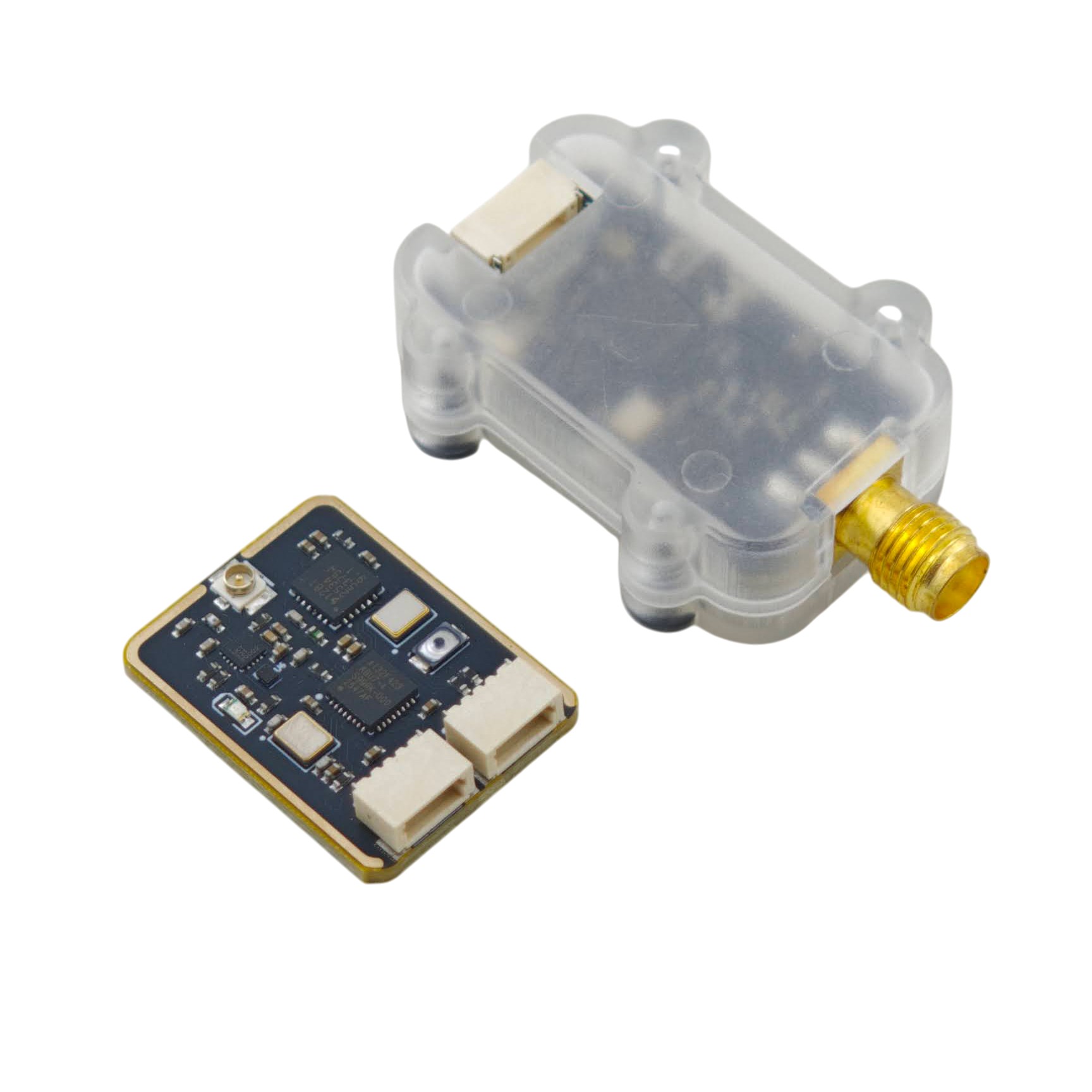

The set consists of the LR24-F module, which has a JST-GH connector with UART output and a USB-C connector for direct connection to a computer, phone, or tablet. The module is equipped with an SMA connector for antenna connection. Dimensions are 41,6 x 25,8 x 11,5 mm and weight is 8 grams.

The second module is the LR24-F-Mini, which is intended for use on the drone. It is smaller, without a plastic enclosure and USB-C connector. The antenna is connected via an IPEX1 (u.FL) connector. The module has an SH1.0-4P connector for connection to the flight controller. Dimensions are 24 x 18 x 5,8 mm and weight is 2,5 grams.

Module status is indicated by a green LED that stays on continuously when a connection is established. Parameters can be adjusted via the MicoAssistant app.
