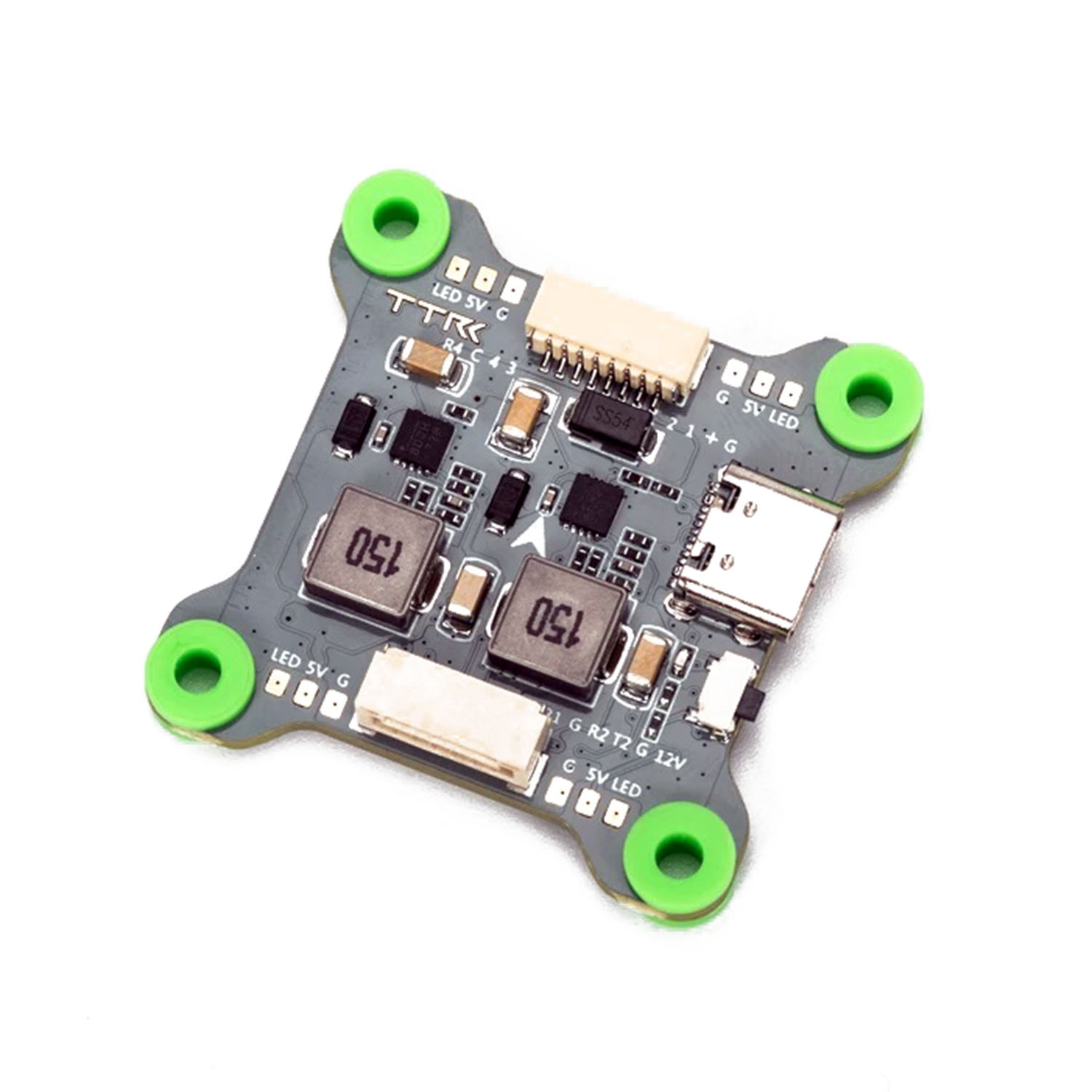

TransTEC F7 HD is a control unit with an F7 processor suitable for copters with a DJI FPV system. Thanks to the easy connection with a cable with a connector, the construction is even easier and there is no need for additional soldering. The board has a 12V BEC for the DJI FPV flight unit, so even 6S batteries can be used without any problems. The board uses a USB-C connector, so you only need one cable. Pads for easy connection of LEDs are also an advantage.
Hauptmerkmale
- MPU: STM32F722RET6
- IMU: MPU6000
- 4x UART
- Input voltage: 6-30V (2-6S)
- Easy connection to ESC via connector (G / Vbat / S1 / S2 / S3 / S4 / Curr / R4)
- Easy connection to DJI FPV via connector
- BEC: 5V @ 2A
- BEC: 12V @ 1A
- Weight: 6g
- Betaflight target: TRANSTECF7HD
Inhalt
- 1x control unit
- 1x softmount
- 1x set of cables
