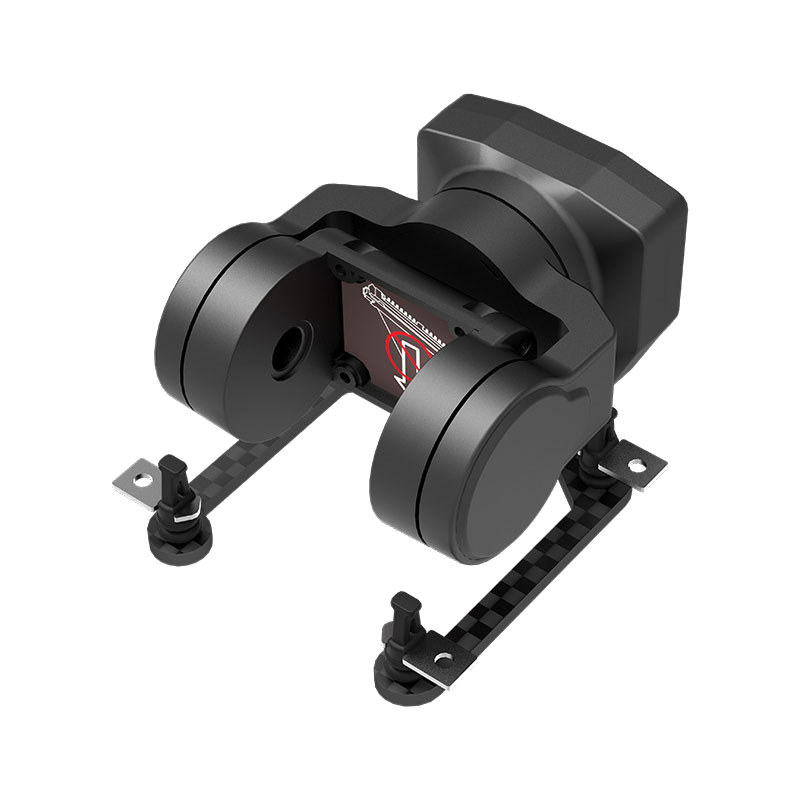

C-20D is a horizontal 2-axis FPV gimbal designed for analog Micro cameras (19mm). With mechanical stabilization on two axes and powerful motors, the gimbal effectively reduces vibrations and compensates for sudden RC model movements, ensuring smooth and stable footage. The gimbal stabilizes the pitch and roll axes, making it especially suitable for smaller drones or drones where yaw stabilization is not required. The C-20D can be powered with 7.4–26.4V (2–6S) and installed with the camera facing either down or up. During normal operation, power consumption is minimal and does not exceed 8W under load.
The C-20D gimbal can be controlled via S.BUS, CRSF, PWM, or the MAVLink protocol, which is supported in combination with ArduPilot and PX4 firmware. It can also be directly connected to a head tracker, transferring the pilot’s head movements directly to the gimbal. The gimbal offers six modes, including the classic FPV mode, pitch stabilization, or ortho-view mode for a vertical downward view. It allows setting up to three preset modes for easy switching and also offers sensitivity adjustment, which affects response speed to drone/RC model movements.
The gimbal’s range of motion is ±120° on the pitch axis and ±60° on the roll axis. The maximum rotation speed reaches up to 1500°/s.
A USB adapter (not included) is required for PC configuration.
Hauptmerkmale
- Dimensions: 54.5x41.2x35mm
- Weight: 34g
- Operating voltage: 7.4–26.4V (2-6S)
- Consumption: 1.2W (sleep mode) / 9.5W (Stall)
- Mounting method: down / up
- Control: Headtracker XF, UART (private protocol & MAVLink), S.BUS, CRSF, PWM
- Stabilization type: 2-axis mechanical (pitch + roll)
- Angle accuracy: ±0.005°
- Control range: Pitch ±120°, Roll ±60°
- Maximum control speed: 1500°/s
- Maximum camera weight: 20g
- Compatibility: Analog camera - 19mm (Micro)
Die Handbücher
Inhalt
- 1x Gimbal
