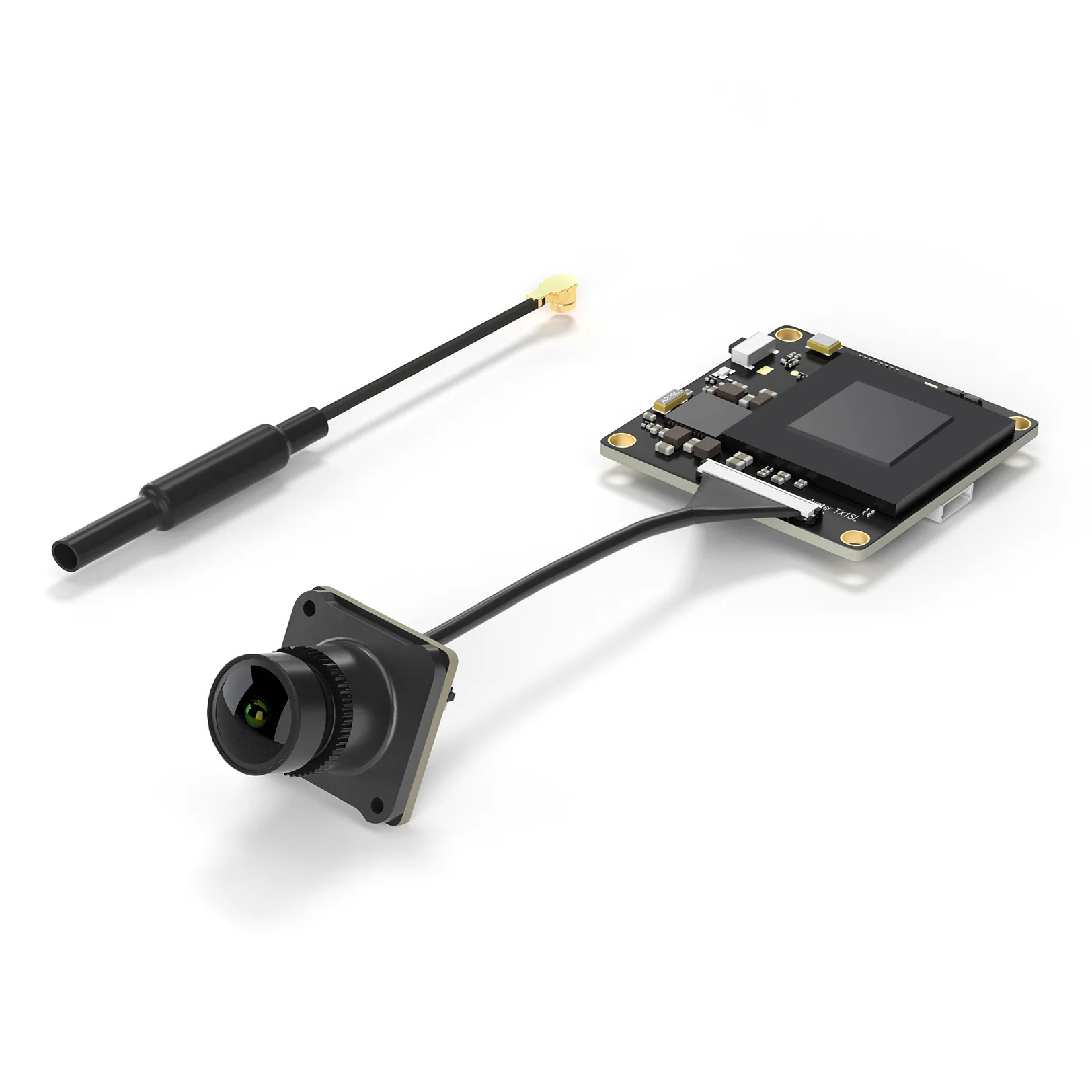

Every gram counts. Walksnail Avatar Mini Lite kit is a lightweight combination of camera, video transmitter and antennas for Walksnail Avatar digital system. Walksnail Avatar enables video transmission in full HD (1080p) or HD (720p) quality with a low latency of even 22ms and a high refresh rate of 60/120fps and a data throughput of 25/50mbps. The Walksnail Avatar system supports the so-called Canvas mode, in which a classic full-scale OSD can be drawn into the image, as you are used to from the analog world.
The Avatar Mini 1S Lite kit is even a bit smaller and lighter than the Avatar Mini1S kit. The complete transmission weighs just 7.8 grams. The set is thus intended primarily for Tinywhoopy. For transmission, it uses one linear antenna connected via a u.FL connector. The video transmitter was reduced and lightened to 5.1 grams. It can be powered by 3.1-5V (1S Lipo / 5V BEC). The maximum power is 350mW. The transmitter has an internal 8GB memory, to which it is possible to record images from the camera. For easy installation in the copter, the video transmitter has holes with a pitch of 25.5x25.5mm M2. The Avatar HD Lite camera is scaled down and intended for installation in a holder. With a 2.1mm lens, it provides a 170° FOV at a low weight of 1.8g. It is connected to the video transmitter by a 5 cm long cable. The aspect ratio is switchable 4:3/16:9.
Hauptmerkmale
- Camera size: Nano Lite - 14x14x16mm without side holes
- Sensor: 1/2.7"
- Resolution: 1080P/60fps, 720P/120fps, 720P/60fps
- Aspect ratio: 4:3 / 16:9
- FOV: 170°
- Transmission weight: 7.8g
- Coax. cable: 55mm
- Frequency band: 5725-5850GHz
- Transmit Power: FCC:<25.5dBm;CE:<14dBm
- Mounting holes: 25.5x25.5mm M2
- Size: 30x30x6.5mm
- Internal memory: 8GB
- Power supply: 3.1-5V
- Antenna connector: u.FL
Inhalt
- 1x Avatar vtx + camera + antenna
- 1x Power cable
- 1x USB cable
- 1x Set of screws
- 1x Set of softmounts
